iBELL Inverter ARC Welding Machine (IGBT)M250-103, 250A with Hot Start,Anti-Stick,Arc Force,Power Boost Functions- 1 Year Warranty

Sale Sale
Original price Rs12,300.00
Original price Rs12,300.00 - Original price Rs12,300.00
Original price Rs12,300.00
Current price Rs8,199.00
Rs8,199.00 - Rs8,199.00
Current price Rs8,199.00

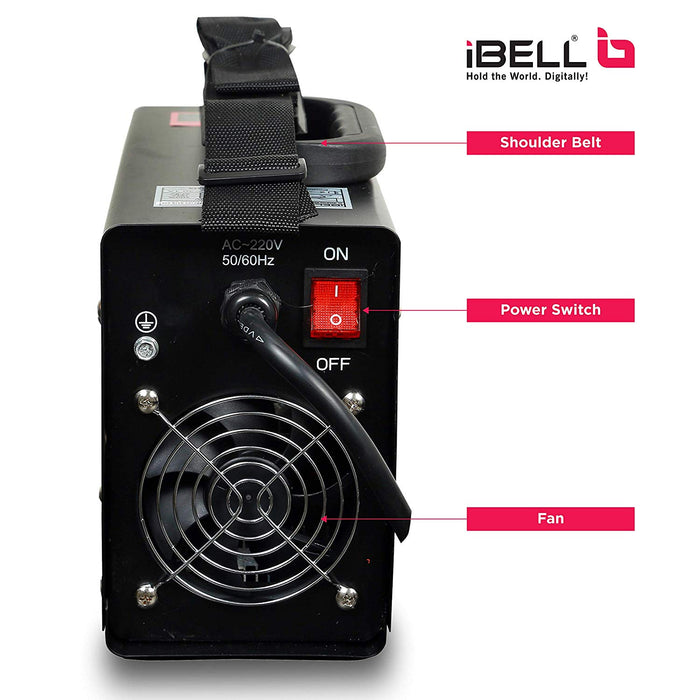

iBELL is a trusted name in the market when it comes to welding machines. iBELL’s welding machine is suitable for both indoor and outdoor functions. Incorporated with the highly advanced IGBT inverter and VRD technology, the machine is ideal for welding, maintaining and repairing mild steel, stainless steel, aluminium and other metals.

Features:

  • The machine is lightweight and portable. Its ergonomic and compact design makes it easy to carry to any place.
  • It is an ideal welder for both professional and personal use owing to its features and strong ability.
  • iBELL’s welding machine has inbuilt anti-stick property which prevents overloading of the unit and facilitates easy withdrawal of electrode without damaging it in case of sticky metal.
  • There is either inbuilt or adjustable hot start function which increases the welding current at the start of a welding operation.
  • It has inbuilt ARC Force that increases the welding current in order to prevent sticking when the electrode enters in the melted meta This feature supports production with consistently excellent arc performance.
  • Four types of connections are available in the machine – electrode cable, welding electrode, earth cable and grounding connection.
  • Heat, quality and power indicators are present.
  • The machine operates in single phase.
  • The heavy duty welding machines operates at 16.1 (8.9) kVA input capacity and 160-250 V voltage.
  • It is widely used in sheet metal processing, machinery manufacturing, iron processing, automotive maintenance, etc.
  • It is a highly cost-effective machine that is both quick and convenient to use.
  • It has a power boost button that increases welding current up to 40%.
  • It is equipped with a high-performance capacitor which offers strong resistance to net voltage fluctuation.
  • It proves extremely useful in long, continuous operations.
  • Promising long term stability, the welding machine has inbuilt anti stick, hot start and ARC functions.
  • It assures more power saving and more stable performance by using IGBT power tube.
  • Current intake can be adjusted up to 250 Amp.
  • It has an electrode of 1.6-5 mm.
  • The recommended cable length is up to 10 m.

Specification

Input Capacity 10.8 KVA
Rated Voltage 220V
Current ( Ampere) 200-220Amp
Welding Type Arc Welding
Features IGBT Technology
Hot Start
Current Adjustment
Inbuilt Anti-Stick Functions
Inbuilt Arc Force
Power Boost Function
Weight of Machine 3.90kg
Weight of Kit 5.88kg
Power Source Type Corded
Colour Red
Warranty 1 Year
In Package
IBL M250-103 MMA Welding Machine
Accessories Electrode Cable+ Earth Cable
Wire Brush
Goggles
Warranty Card
User Manual
